Filters & Multicoupling

Category:

Showing all 16 results

1 Watt N-type male dummy load, DC-3 GHz, 50 Ohms, tri-metal plated – 30mm x 19mm

ZDL-NM1-R

100 Watt 7/16″ DIN male dummy load, square heatsink, DC-3 GHz, 50 Ohms – 126mm x 140mm x 100mm

ZDL-DINM100

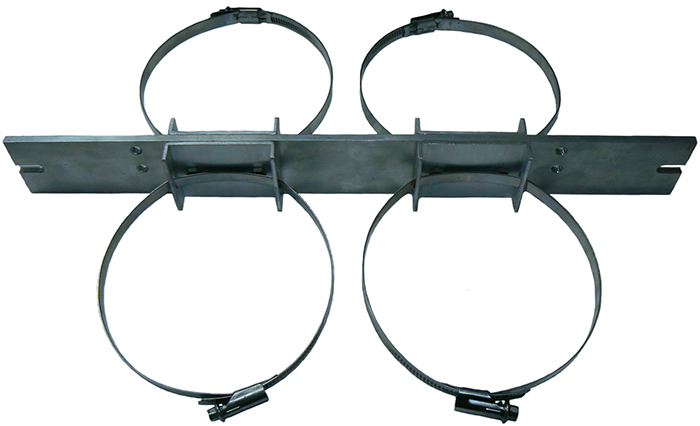

19″ rack bracket assembly for ZCG UHF cavity filters.1-4 mounting – 140-160mm O/D

A-2806

19″ rack bracket assembly for ZCG VHF/Airband cavity filters, side-by-side mounting – 180-225mm O.D. filter compability

A-2806-2

2-way wilkinson FM power splitter, 80-520 MHz, >20dB isolation per port,

PDW-50520-2

200 Watt N-type male dummy load, large heatsink, DC-3 GHz, 50 Ohms – 226mm x 142mm x 64mm

ZDL-NM200

30 Watt 7/16″ DIN male terminated dummy load, DC-3 GHz, 50 Ohms, square heatsink – 126mm x 42mm x 120mm

ZDL-DINM30

5 Watt N-type male terminated dummy load, DC-3 GHz, 50 Ohms, round heatsink – 30mm x 20mm dia.

ZDL-NM5-R

50 Watt 7/16″ DIN male dummy load, large heatsink, DC-3 GHz, 50 Ohms – 97.5mm x 59mm dia.

ZDL-DINM50-R

50 Watt N-type male terminated dummy load, DC-3 GHz, 50 Ohms, round heatsink – 105mm x 50mm dia.

ZDL-NM50-R

500 Watt N-type male dummy load, large heatsink, DC-3 GHz, 50 Ohms – 420mm x 140mm x 132mm

ZDL-NM500

60 Watt dummy load, N-type male, large round heatsink, DC-3 GHz, 50 Ohms – 98mm x 51mm

ZDL-NM60-R

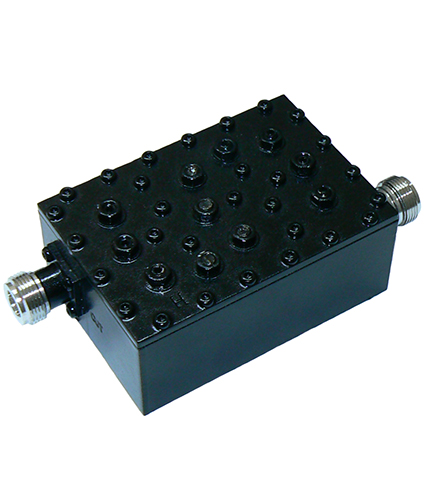

Compact UHF/ISM bandpass filter, 915-928 MHz, 50W, 1.5dB insertion loss, N-type female – 88mm x 60mm x 43mm

ZFIL-915-928-50-01

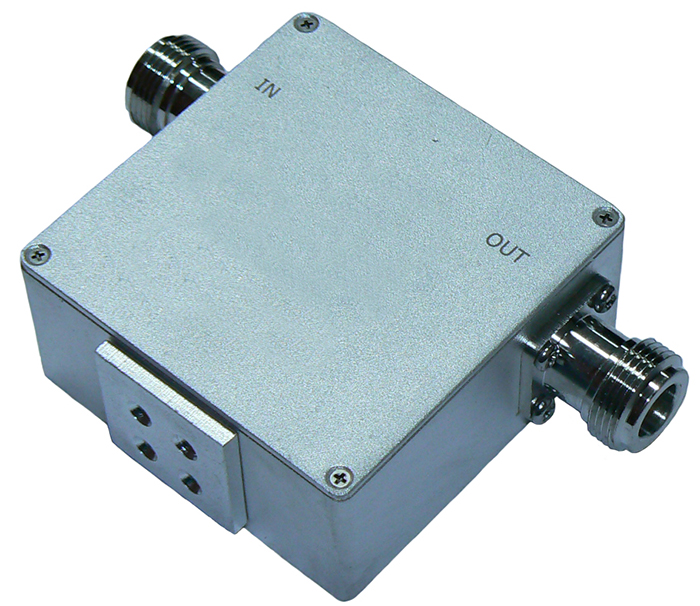

FM Radio coaxial isolator, 87.5-108 MHz, 100W, N-type female terminations, 0.6dB insertion loss – 60mm x 28mm

ZIS108NF

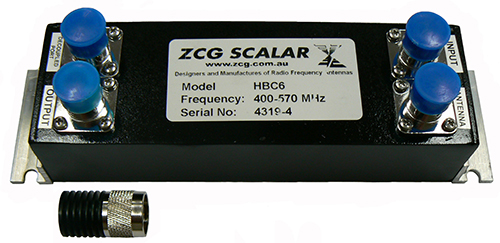

UHF hybrid coupler, 400-570MHz at -22dB, 50 Ohm, 75/25 coupling ratio, N-type female, N-type male 30 watt dummy load

HBC6

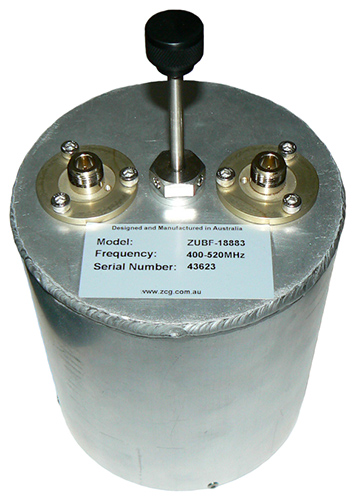

UHF single cavity band-pass filter, 400-520 MHz, specify 300 kHz 2 x N-type females, 100W – 150mm x 200mm

ZUBPF-400520
