Product Code: ZDL-DINM50-R
$301.80

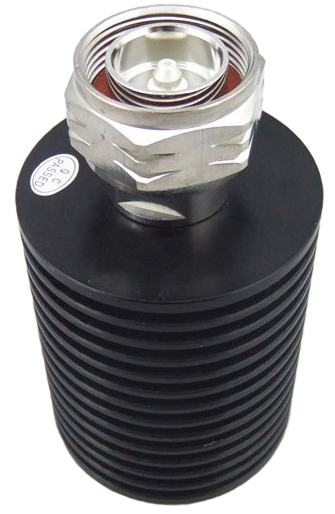

The ZDL-DINM50-R large round heatsink 50 watt dummy load is rated for up to 50 Watts input power from DC to a maximum frequency of 3 GHz. The high quality termination and construction results in excellent capacity in anti-pulse and anti-burnout, suitable for communication equipment, radar, antenna and indoor distribution systems. The ZDL-DINM50-R 50W dummy load is IP66 rated with an operating temperature rating from -45 degrees C to + 45 degrees C.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Bandwidth | Full frequency stated - compatible |
| Maximum Power | 50 Watts |
| Impedance | 50 Ohms - nominal |
| Construction | Black powdercoat finish heatsink/fins and tri-metal plated N-male termination |
| Connector | 7/16" DIN male / 7/16" DINM / 716DINM |
| Tuning | Factory at <1.2:1 VSWR - typical |
| Dimensions | Length: 97.5mm ; Heatsink diameter: 59mm |
