Product Code: ZDL-NM2-R
$68.99

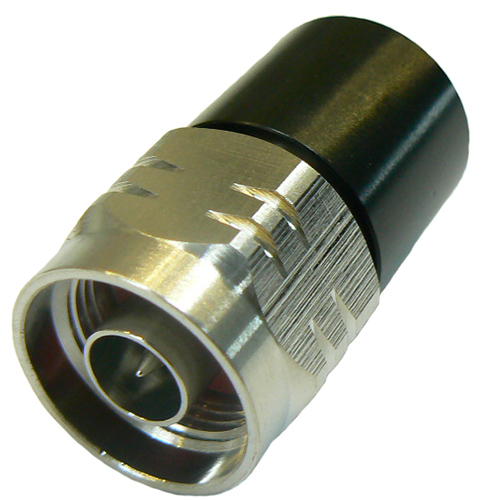

The ZDL-NM2-R N-male terminated 2 Watt dummy load is constructed of a black passivated finish round heat-dissipating fin design for improved heat management. The ZDL-NM2-R round heatsink 2W dummy load is rated for usage up to 2 Watts terminated with a N-type male. The ZDL-NM2-R is IP66 rated.
| Frequency | DC to maximum 6 GHz |
|---|---|
| Bandwidth | Full frequency stated - compatible |
| Maximum Power | 2 Watts |
| Impedance | 50 Ohms - nominal |
| Construction | Black passivated aluminium heatsink, PTFE insulators and tri-metal plated N-male termination |
| Connector | N-type male / N-male |
| Tuning | Factory at 1.2:1 VSWR - typical |
| Dimensions | Length: 36mm ; Heatsink diameter: 15mm |
