Product Code: 716DINM1250
$33.60
5 in stock

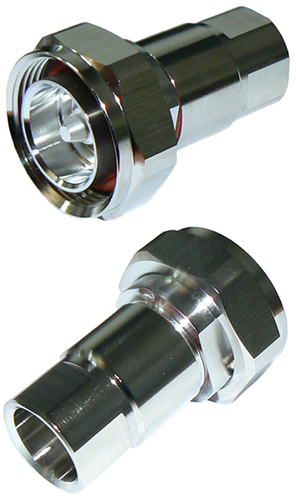

The 716DINM1250 is a 7/16" DIN male clamp style connector suitable for 1/2" flexible corrugated shielding, foam dielectric coaxial cable or 1/2" radiating 'leaky feeder' coaxial cable. Suitable for broadcast systems or low passive intermodulation (P.I.M.) requirements such as mobile phone/cellular systems.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | 2 Kilowatts / 2000 Watts - peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - push pin, clamp-type |
| Construction | Tri-metal plated body, PTFE insulators, silver plated conductor, internal rubber O-ring, rear spring ring and UB stabilised glueshrink |
| Connector | 7/16" DIN male / 7/16" DINM / 716DINM |
| Dimensions | Length: 50mm ; Head hex: 32mm |
