Product Code: 716DINF7850
$71.99
1 in stock

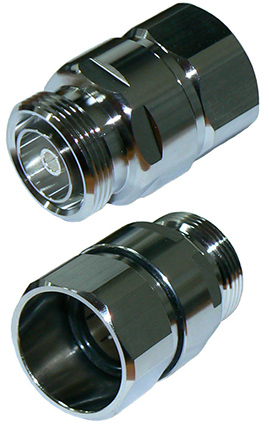

The 716DINF7850 is a 7/16" DIN female clamp style connector for 7/8" flexible corrugated outer shielded, foam dielectric coaxial cable or 7/8" radiating 'leaky feeder' coaxial cable. A 7/16" DIN is suitable for low passive intermodulation (P.I.M.) requirements such as in mobile phone/cellular systems or systems installed around mobile phone/cellular systems.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | 2 Kilowatts / 2000 Watts - peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - push pin, clamp-type |
| Construction | Tri-metal plated body, PTFE insulators and rubber O-rings |
| Connector | 7/16" DIN female / 7/16" DINF / 716DINF |
