Product Code: 716DINF1250SF
$43.99
1 in stock

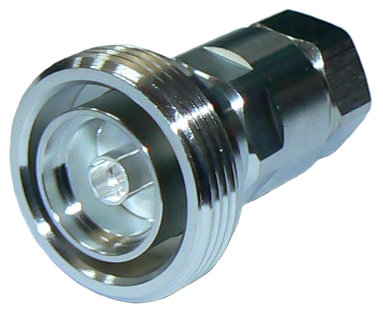

The 716DINF1250SF is a 7/16" DIN female clamp style connector for 1/2" super flexible, helical shielded, foam dielectric coaxial cable. Suitable for broadcast systems or low passive intermodulation (P.I.M.) systems such as mobile phone/cellular systems.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | 2 Kilowatts / 2000 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - push pin, clamp-type |
| Construction | Tri-metal plated body and nut, PTFE insulators, silver plated centre conductor and rubber O-rings |
| Connector | 7/16" DIN female connector / 7/16" DINM / 716DINM |
