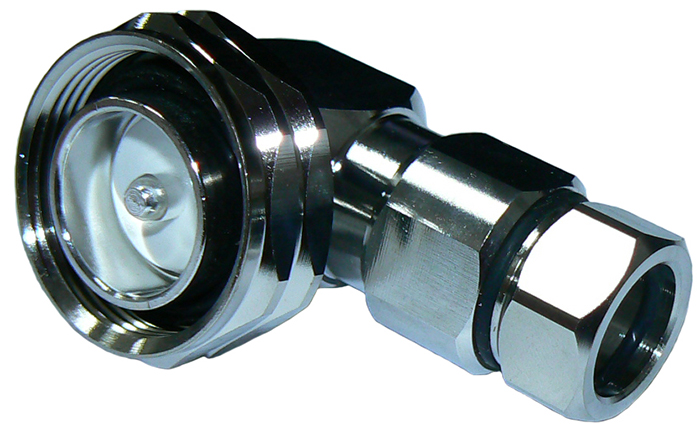

7/16″ DIN right-angle male low P.I.M. connector for 1/2″ super flexible helical, foam dielectric coaxial cable, ZCG1250SF, DC-3 Ghz, 50 Ohms – tri-metal plated

Name: 7/16" DIN right-angle male low P.I.M. connector for 1/2" super flexible helical, foam dielectric coaxial cable, ZCG1250SF, DC-3 Ghz, 50 Ohms - tri-metal plated
SKU: 716DINRAM1250SF
Price: 25.99 AUD
Availability: BackOrder

Product Code: 716DINRAM1250SF

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$25.99

The 716DINRAM125SF is a right angle 7/16" DIN male connector for 1/2" super flexible helical shielded, foam dielectric coaxial cable. Suitable for broadcast systems or low passive intermodulation (P.I.M.) systems such as mobile phone/cellular systems.

Frequency	DC to maximum 3 GHz
Maximum Power	2kW - peak
Impedance	50 Ohms - nominal
Polarisation	Right-angle - clamp-type
Construction	Tri-metal plated body, PTFE insulator, silver plated centre conductor and rubber O-ring
Connector	Right-angle 7/16" DIN male / 7/16" DIN RAM / 716DINRAM
