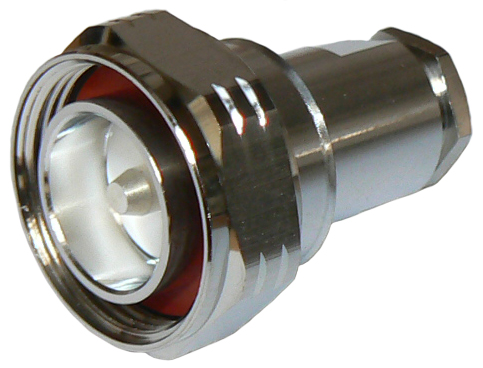

7/16″ DIN male clamp-style, low PIM connector for MIL-SPEC RG213 stranded coaxial cable, DC-3 GHz, 50 Ohms – tri-metal plated

Name: 7/16" DIN male clamp-style, low PIM connector for MIL-SPEC RG213 stranded coaxial cable, DC-3 GHz, 50 Ohms - tri-metal plated
SKU: 716DINM213
Price: 22.99 AUD
Availability: BackOrder

Product Code: 716DINM213

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$22.99

The 716DINM213 is a 7/16" DIN male clamp-style, low PIM coaxial connector for MIL-SPEC RG213 stranded core, solid PE dielectric, coaxial cable (SKU: 7800-100/7800-300).

Frequency	DC to maximum 3 GHz
Maximum Power	2 Kilowatts / 2000 Watts - peak
Impedance	50 Ohms - nominal
Polarisation	Straight - push pin, clamp-type
Construction	Tri-metal plated body, silver plated centre pin, PTFE insulator and silicone O-ring
Connector	7/16" DIN male / 7/16" DINM / 716DINM
