Product Code: 716DINF1250
$39.99
4 in stock

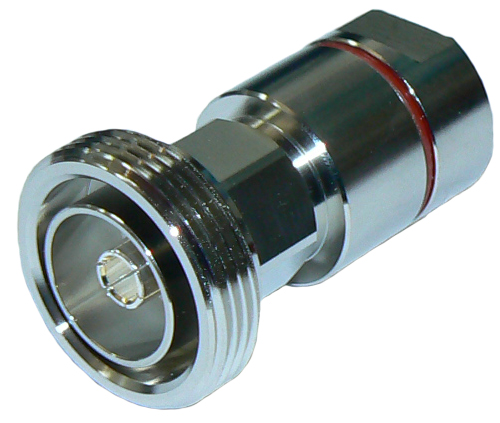

The 716DINF1250 is a 7/16" DIN female clamp style connector for 1/2" flexible corrugated shielded, foam dielectric coaxial cable or 1/2" radiating "leaky feeder" coaxial cable. Suitable for broadcast systems or low passive intermodulation (P.I.M.) systems such as mobile phone/cellular systems.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | 2 Kilowatts / 2000 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - push pin, clamp-type |
| Construction | Tri-metal plated body, PTFE insulators and rubber O-ring |
| Connector | 7/16" DIN female / 716DINF |
