Product Code: PDW-50520-2
$373.99
On back order

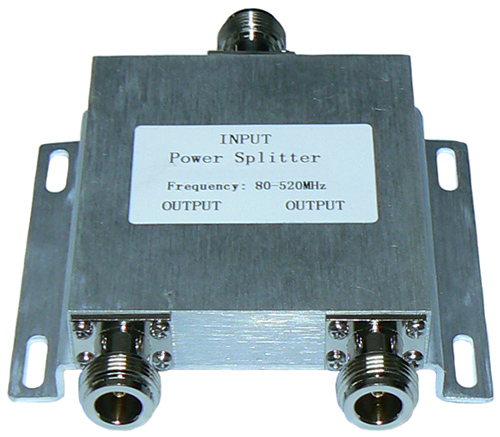

The PDW-50520-2 is a wilkinson power splitter for VHF, FM Radio, VHF Air Band and UHF utilisation across the entire 80-520 MHz frequency range. The PDW-50520-2 wilkinson power splitter is terminated with N-type female connectors on the input and outputs. Isolation between ports is >20dB
| Frequency | 80-520 MHz - FM Radio, Airband, VHF and UHF compatible |
|---|---|
| Maximum Power | 50 Watts |
| Impedance | 50 Ohms - nominal |
| Construction | Machined aluminium outer case with incorporated mounting brackets and nickel plated N-female terminations |
| Connector | Input: N-type female, Output: N-type female |
| Tuning | Factory to better than 1.4:1 VSWR |
| Dimensions | Length: 114mm, Width: 96mm, Height: 27mm |
