Product Code: UF-7934-3
$12.99

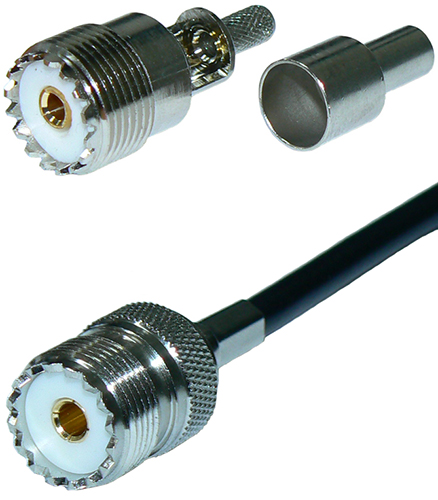

The UF-7934-3 is a UHF female SO239, solder pin, crimp connector for RG58A/U solid PE dielectric, stranded core coaxial cable and RG58 low loss, foam PE dielectric, solid core coaxial cable. To solder the pin you must utilise the open crimp area on the rear of the connector prior to crimping the sleeve onto the body using a 5.41 crimper. Ensure no loose braid comes into contact with centre pin, we recommend trimming any excess braid from rear opening prior to crimping. ZCG recommend water/dust ingression protection of butyl rubber tape and PVC tape be applied to all exposed terminations once fitted.
| Impedance | 50 Ohms - nominal |
|---|---|
| Polarisation | Straight - solder pin, crimp sleeve type |
| Construction | Nickel plated body and crimp sleeve, gold plated centre pin and PTFE insulator |
| Connector | UHF female / UHF-F, also known as SO-239 |
| Tuning | =1.10 @ DC-300 MHz |
| Dimensions | Length: 40mm, Diameter: 16mm |
