UHF female bulkhead connector, solder pin, crimp sleeve for RG316/RU100, 5/8-UNEF-24 thread to 1/2-28UNEF-2A thread – tri-metal plated

Name: UHF female bulkhead connector, solder pin, crimp sleeve for RG316/RU100, 5/8-UNEF-24 thread to 1/2-28UNEF-2A thread - tri-metal plated
SKU: UF-7911-3
Availability: InStock

Product Code: UF-7911-3

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$35.99

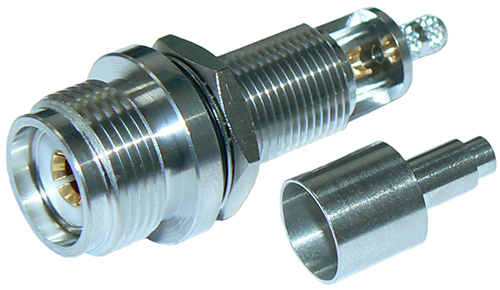

The UF-7911-3 is a UHF female SO239 bulkhead style, solder pin, crimp connector for RG316 miniature PTFE dielectric coaxial cable (SKU: 7853-2) and RU100 low loss, solid core, solid PE dielectric cable (SKU: 7876-3). The UF-7911-3 is a solder pin, crimp sleeve style bulkhead mount connector for mounting through wall plates or for antenna mounting. ZCG recommend water/dust ingression protection of amalgamation butyl rubber tape and PVC tape be applied to all exposed terminations once installed.

Impedance	50 Ohms - nominal
Polarisation	Straight - bulkhead mount
Construction	Tri-metal plated body, nut, washer and crimp sleeve, gold plated centre pin and PTFE insulator
Connector	UHF female / UHF-F, also known as SO-239
