Product Code: Y409D-R
$365.99
6 in stock

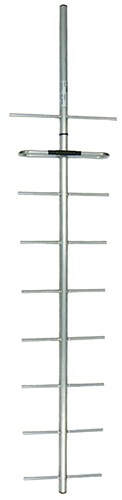

The Y409D-R round boom Yagi is a cost effective solution for directional UHF communications within the 450-480MHz range. Other versions of the Y409-R Yagi are available covering the rest of the UHF 380-520MHz range.
| Frequency | 450-480 MHz - UHF, including 477 MHz CB Radio |
|---|---|
| Bandwidth | Full frequency range stated - 30 MHz |
| Gain | 11.5 dBd |
| Maximum Power | 150 Watts |
| Impedance | 50 Ohms |
| Polarisation | Mount horizontal or vertical as required - rotate to intende |
| Construction | Welded aluminium boom, elements and folded dipole, 200mm external RG59 coaxial cable and N-female connector |
| Connector | N-type female fitted to 200mm external RG59 cable as standar |
| Tuning | Factory at 1.5:1 VSWR |
| Dimensions | Length: 1.506m, Widest element: 400mm, Boom diameter: 25mm O |
Australian owned & manufactured, high quality RF solutions since 1970
Experienced, knowledgeable in-house sales consultants and technical support
Quality certified and reliable, trusted product support
