Product Code: ADP-8351-4
$63.99
1 in stock

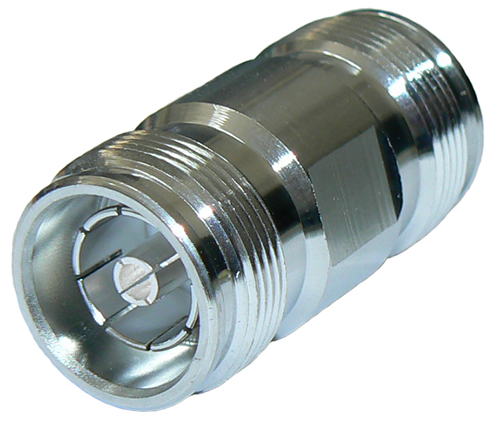

The 4.3-10 is the newest low PIM standard termination utilised in mobile phone cellular base station installation due to its reliable connectivity and high passive intermodulation or PIM performance. Our ADP-8351-4 type 4.3-10 female to type 4.3-10 female adaptor is suitable for transitioning from a 4.3-10 male termination or for through-wall requirements, such as on cellular hardware inputs.
| Frequency | DC to maximum 12 GHz |
|---|---|
| Maximum Power | 500 Watts at 2 GHz at 90°C |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - screw-type |
| Construction | Tri-metal plated body, silver plated conductor and PTFE insulator |
| Connector | Type 4.3-10 female screw-type both ends |
| Tuning | <1.1:1 at DC-3 GHz ; 1.2:1 at 3-6 GHz |
| Dimensions | Length: 40mm ; End Threads: M20 x 1-69 |
