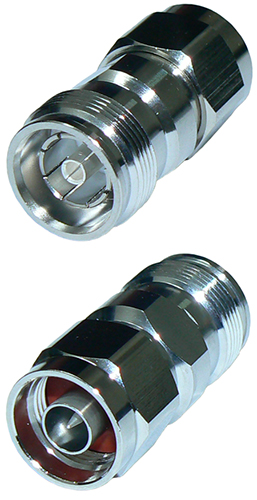

Type 4.3-10 female screw-type to N-type male connector adaptor, inter-series, DC-12 GHz, 50 Ohms – Tri-metal plated

Product Code: ADP-8351-5

$61.99

On back order

The 4.3-10 is the newest low PIM standard termination utilised in mobile phone cellular base station installation due to its reliable connectivity and high passive intermodulation or PIM performance. The ADP-8351-5 Type 4.3-10 female to N-type male adaptor is suitable for transitioning from a Type 4.3-10 male termination to a N-female termination or for through-wall requirements, such as on cellular hardware inputs.

Quantity
Specifications
Frequency DC to maximum 12 GHz
Maximum Power 500 Watts at 2 GHz at 90°C
Impedance 50 Ohms
Polarisation Straight - screw-type
Construction Tri-metal plated body, silver plated centre conductor and PTFE insulator
Connector Type 4.3-10 female to N-type male
Tuning <1.1:1 @ DC-3 GHz, 1.2:1 @ 3-6 GHz
Dimensions Length: 40mm
