Product Code: SM-8313
$15.99

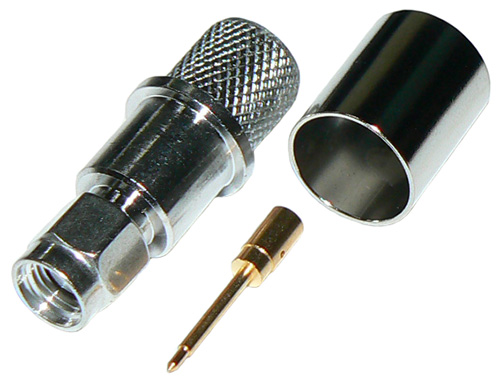

The SM-8313 is a tri-metal plated SMA male, solder pin, crimp connector for RU400 low loss, solid copper conductor coaxial cable (SKU: 7890-100/7890-300) or any equivalent 400 series cable available on the market. The SM-8313 is rated for up to 500 mating cycles and is RoHS compliant. Crimp tool required: 0.429" hex for crimp sleeve
| Frequency | DC to maximum 12.4 GHz |
|---|---|
| Maximum Power | Dielectric withstanding voltage: 1000V RMS,50Hz,at sea level |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp-type |
| Construction | Tri-alloy plated body and nut, gold plated centre pin, PTFE insulator and silicone rubber gasket |
| Connector | SMA male / SMA-M |
| Tuning | 1.2:1 at DC-3 GHz, 1.3:1 at 3-6 GHz |
| Dimensions | Length: 31mm, Diameter: 12.5mm, Mating thread: 1/4"x36 -UNS- |
