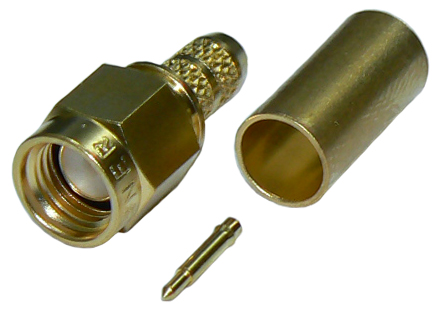

SMA male solder pin, crimp connector for RG142B/U solid core, PTFE dielectric coaxial cable, DC-18 GHz, 50 Ohms, Huber & Suhner – gold plated

Name: SMA male solder pin, crimp connector for RG142B/U solid core, PTFE dielectric coaxial cable, DC-18 GHz, 50 Ohms, Huber &amp; Suhner - gold plated
SKU: SM-8306
Availability: InStock

Product Code: SM-8306

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$63.99

The SM-8306 is a SMA male solder pin, crimp-style connector for RG142B/U silver plated solid core, teflon dielectric coaxial cable (SKU: 7823-3-300). ZCG recommend all exposed terminations be water/dust ingression protected using amalgamation butyl rubber tape and PVC tape once installed.

Frequency	DC to maximum 18 GHz
Impedance	50 Ohms - nominal
Polarisation	Straight - solder pin, crimp-type
Construction	Gold plated body, crimp sleeve and pin and PTFE insulator
Connector	SMA male / SMA-M
Dimensions	Length: 25mm, Hex: 7mm
