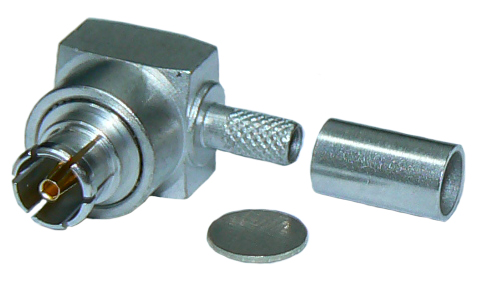

Right-angle P-SMP female body, female crimp pin, crimp-style connector for RG316 or RU100 coaxial cable, DC-10 GHz, 50 Ohms – nickel plated

Name: Right-angle P-SMP female body, female crimp pin, crimp-style connector for RG316 or RU100 coaxial cable, DC-10 GHz, 50 Ohms - nickel plated
SKU: SMP-8279-9
Price: 52.99 AUD
Availability: InStock

Product Code: SMP-8279-9

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$52.99

The SMP-8279-9 is a right-angle PSMP female, solder pin, crimp style coaxial connector for RU100 cable (SKU: 7876-3), RG316 miniature teflon dielectric cable (SKU: 7853-2) or any 100 series coaxial cable available on the market. The SMP-8279-9 P-SMP connector is suitable for board-to-board or cable-to-board connections including power amplifier filter units.

Frequency	DC to maximum 10 GHz
Maximum Power	Up to 200 Watts at 2.2 GHz
Impedance	50 Ohms - nominal
Polarisation	Right-angle - solder pin, crimp-type
Construction	Nickel plated body, gold plated centre conductor and PTFE insulator
Connector	P-SMP female
Tuning	>32dB at DC-3 GHz, >26dB at 3-6 GHz
