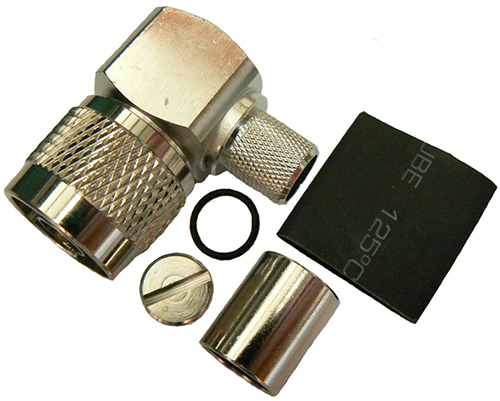

Right-angle N-type male solder pin, crimp connector for RU400 low loss cable and RG8 cable, DC-11 GHz, 50 Ohms – tri-metal plated

Name: Right-angle N-type male solder pin, crimp connector for RU400 low loss cable and RG8 cable, DC-11 GHz, 50 Ohms - tri-metal plated
SKU: NM-8286
Availability: BackOrder

Product Code: NM-8286

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$26.99

The NM-8286 is a low PIM right-angle, N-type male, solder pin, crimp connector for RU400 low loss, solid copper conductor coaxial cable (SKU: 7890-100/7890-300) or RG8 coaxial cable. The NM-8286 right-angle N-male connector has a screw access plug with O-ring for easy access for centre conductor soldering. Waterproofing of self-amalgamating butyl rubber tape and a top layer of uPVC tape is recommneded to be applied once installed.

Frequency	DC to maximum 11 GHz
Maximum Power	500 Watts - 1kW peak
Impedance	50 Ohms - nominal
Polarisation	Right-angle - solder pin, crimp-type
Construction	Tri-metal plated right-angle body, crimp sleeve & access nut, gold plated centre pin and O-ring
Connector	Right-angle N-type male / Right-angle N-male
