Product Code: BM-8265
$20.99

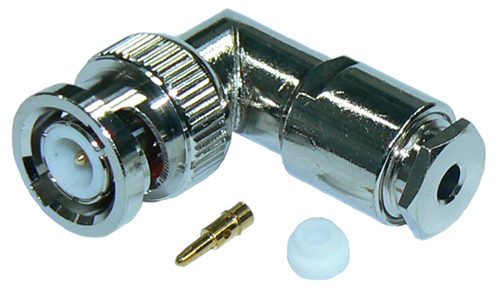

The BM-8265 is a right-angle BNC male solder pin, clamp-style coaxial connector for RG174A/U miniature, stranded core, solid PE dielectric coaxial cable (SKU: 7877-500) and RG316 silver plated solid core, teflon dielectric coaxial cable (SKU: 7853-2).
| Frequency | DC to maximum 3 GHz |
|---|---|
| Maximum Power | Dielectric withstanding voltage: =1500V RMS, 50Hz, at sea l |
| Impedance | 50 Ohms - nominal |
| Polarisation | Right-angle - solder pin, clamp-style |
| Construction | Nickel plated body and clamp nut, gold plated centre pin and PTFE insulator and spacer |
| Connector | BNC male / BNC-M |
| Tuning | 1.25:1 VSWR @ DC-3 GHz |
