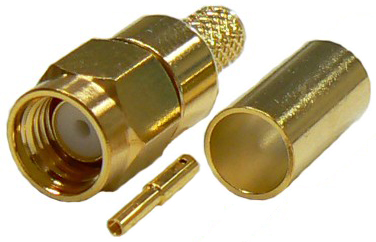

Reverse gender SMA male, solder pin, crimp connector for RG174A/U and RG316 coaxial cable, DC-12.4 GHz, 50 Ohms – gold plated

Name: Reverse gender SMA male, solder pin, crimp connector for RG174A/U and RG316 coaxial cable, DC-12.4 GHz, 50 Ohms - gold plated
SKU: SM-7963-10
Availability: InStock

Product Code: SM-7963-10

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$15.99

The SM-7963-10 is a reverse polarity SMA male, solder pin, crimp coaxial connector for MIL-SPEC RG174A/U miniature, stranded core, solid PE dielectric coaxial cable (SKU: 7877-500) and RG316 miniature, silver plated solid core, teflon dielectric coaxial cable (SKU: 7853-2). The SM-7963-10 is a reverse polarity connector consisitng of a male body with female centre pin.

Frequency	DC to maximum 12.4 GHz
Maximum Power	25 Watts
Impedance	50 Ohms - nominal
Polarisation	Straight - solder pin, crimp-type
Construction	Gold plated body, crimp sleeve and pin and PTFE insulator
Connector	Reverse polarity SMA male - male body, female pin / RPSMA-M
