Product Code: SM-7963-13
$12.99

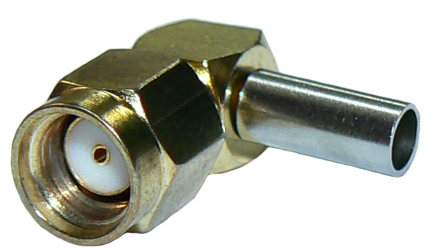

The SM-7963-13 is a reverse polarity, right-angle SMA male, solder pin, crimp connector for RG316 miniature, silver plated solid core, teflon dielectric coaxial cable (SKU: 7853-2), MIL-SPEC RG174A/U miniature, stranded core, solid PE dielectricl coaxial cable (SKU: 7877-500) or RG118 coaxial cable.
| Frequency | DC to maximum 12.4 GHz |
|---|---|
| Maximum Power | 20 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Right-angle - solder pin, crimp-type |
| Construction | Gold plated body and centre pin, nickel plated crimp sleeve and PTFE insulator |
| Connector | Reverse polarity SMA male - male body, female pin / RPSMA-M |
| Dimensions | Length: 16.6mm, Height: 14mm, Mating face thread: 1/4" x 36- |
