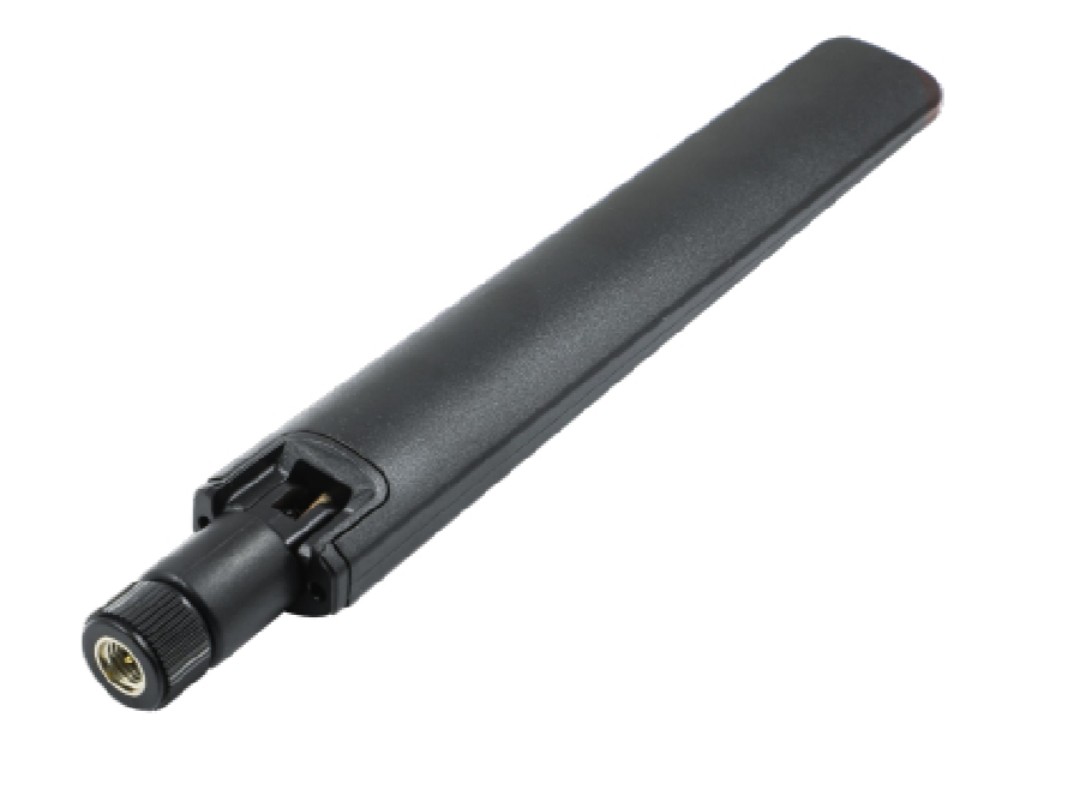

Omnidirectional 4G LTE & 5G cellular folding whip, 704-960 & 1710-2690 MHz and 3.5 GHz , 5W, SMA male, 6 dBi – 152mm

Product Code: ZYUE-WX-LTE5G

$102.99

On back order

The ZYUE-WX-LTE5G antenna, available through ZCG Scalar, is a compact, high-performance solution for reliable wireless connectivity across 698-960 MHz, 1710-2700 MHz, and 3500 MHz. Engineered to support LTE, 4G, and 5G networks, this antenna ensures strong and consistent signal reception in both commercial and industrial applications. Delivering a 6 dBi gain with a 5W maximum power rating, the ZYUE-WX-LTE5G provides efficient coverage and dependable performance for wireless data, IoT, remote monitoring, telemetry, and mobile communications. At just 152 mm in height, it maintains a discreet, low-profile design that suits space-limited installations. Its foldable connector/base allows flexible positioning or stowage when required, while the SMA male termination ensures straightforward integration with a wide range of communication devices, modems, and systems. The ZYUE-WX-LTE5G combines durable construction with excellent RF performance, making it an ideal choice for future-ready connectivity across multiple networks.

Quantity
Frequency 698-960/1710-2700 & 3500 MHz
Bandwidth Specified frequency ranges
Gain 6 dBi
Maximum Power 5 Watts
Impedance 50 Ohms
Polarisation Vertical
Construction Black ABS radome, nickel plated terminationa and robust pivot assembly
Connector SMA male fitted as base
Tuning Factory at <3:1 VSWR
Dimensions Height extended: 152mm ; Height Pivot: 128mm ; Width: 22mm x
