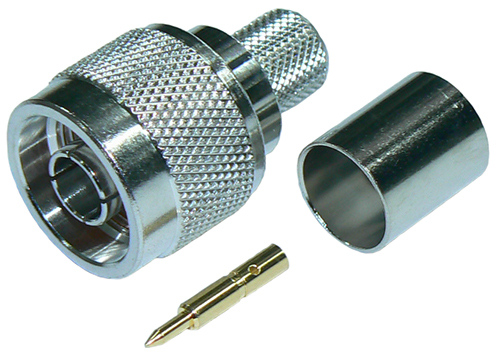

N-type male solder pin, crimp connector for RG214/U dual shielded coaxial cable, DC-11 GHz, 50 Ohms, low PIM – tri-metal plated

Product Code: NM-7937-2

$20.99

On back order

The NM-7937-2 is a low PIM N-type male, solder pin, crimp connector for RG214/U, stranded core, solid PE dielectric, dual braid shielded coaxial cable (SKU: 7808-100).

Quantity
Specifications
Frequency DC to maximum 11 GHz
Maximum Power 500W maximum, 1kW peak
Impedance 50 Ohms - nominal
Polarisation Straight - solder pin, crimp-type
Construction Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator
Connector N-type male / N-male
Dimensions Face dia: 21mm, Body Length: 29.2mm, Crimp sleeve length: 15
