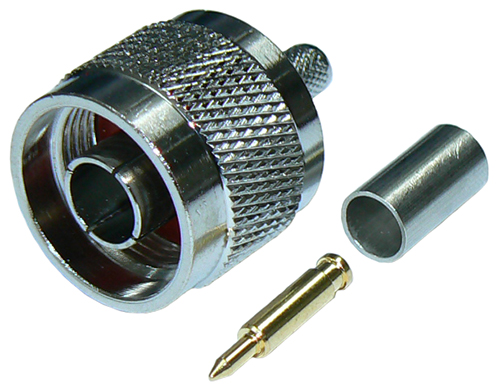

N-type male crimp connector for RG58 coaxial cables, DC-4 GHz, 50 Ohms – tri-metal plated

Product Code: NM-7933-3

$13.99

On back order

The NM-7933-3 N-type male connector is a crimp pin and crimp sleeve style termination suitable for RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300) and RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300). A N-type connector is suitable for general communications or lower power broadcast applications where a reliable and industry standard termination is required. The NM-7933-3 N-male connector is rated for up to maximum 500 mating cycles.

Quantity
Specifications
Frequency DC to maximum 4 GHz
Gain Dielectric withstanding voltage: >1000V RMS at 50Hz
Maximum Power Insulation resistance: >5000M Ohms
Impedance 50 Ohms - nominal
Polarisation Straight - crimp-style
Construction Nickel plated body, gold plated centre conductor and PTFE insulator
Connector N-type male / N-male
Dimensions Length: 26.7mm
