Product Code: ADP-8247
$22.99
2 in stock

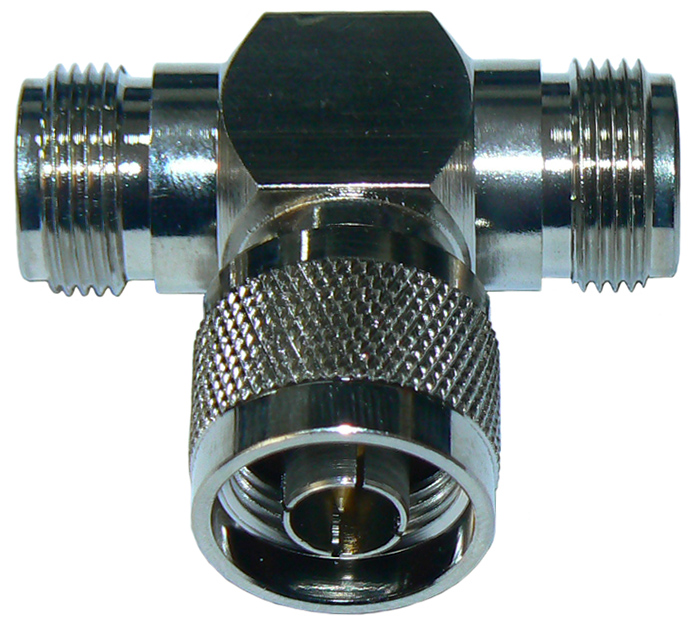

The ADP-8247 is a 3-way T-piece style N-female to N-female to N-male adaptor. The ADP-8247 T-piece N-type adaptor is rated for up to 500 mating cycles and an operating temperature range of -40°C to +85°C. The ADP-8249 N-type T-piece adaptor is utilised on our in-house manufactured band-stop cavity filters.
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts - 1kW peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | T-piece / T-style / 3-way |
| Construction | Nickel plated outer body and N-male nut, gold plated centre conductors and PTFE insulators |
| Connector | N-female, N-female and N-male |
| Dimensions | Width: 55mm, Height: 40mm, Diameter: 16mm |
