Product Code: NF-8227
$14.99
On back order

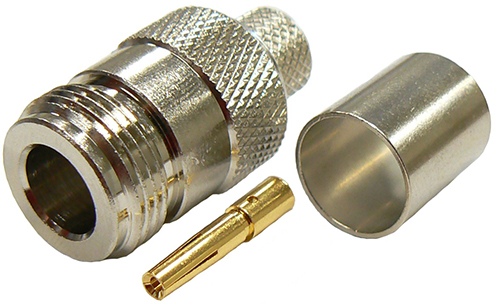

The NF-8227 is a N-type female solder pin, crimp connector for our RU400 low loss, solid copper conductor, foam PE dielectric coaxial cable (SKU: 7890-100/7890-300), RG8 coaxial cable or any equivalent 400 series coaxial cable available on the market.
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts - maximum, 1kW peak |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp sleeve |
| Construction | Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator |
| Connector | N-type female / N-female / N-F |
