Product Code: NF-7915-11
$23.99

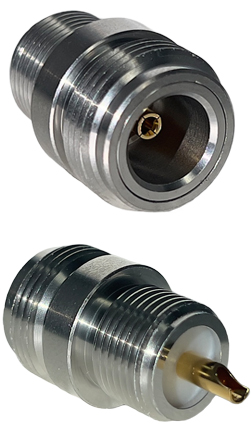

The NF-7915 is a N-type female bulkhead connector or SHM receptacle connector with a 1/2"-26 brass mount thread and roating center pin. The NF-7915 is suitable for wall mounting for through-wall connectivity. ZCG recommend water/dust ingression protection for all termination utilising amalgamation butyl rubber tape and PVC tape be applied once connector installed.
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - receptacle mount-type |
| Construction | Tri-metal plated body, nut, lock tooth washer, gold plated centre conductor and PTFE insulator |
| Connector | N-type female / N-female |
