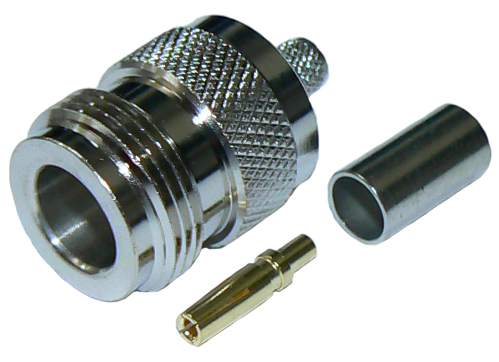

N-type female crimp connector for RG58 coaxial cables, DC-11 GHz, 50 Ohms – tri-metal plated

Product Code: NF-7938

$21.99

7 in stock

The NF-7938 is a N-type female crimp connector suitable for RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300) and RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300).

Quantity
Specifications
Frequency DC to maximum 11 GHz
Maximum Power 500 Watts - 1kW peak
Impedance 50 Ohms - nominal
Polarisation Straight - crimp-style
Construction Tri-metal plated body and crimp sleeve, gold plated centre pin and PTFE insulator
Connector N-type female / N-female - according to IEC 60169-16
Tuning 1.25:1 VSWR at DC-3 GHz
Dimensions Length: 30mm, Diameter: 16.6mm, Mount thread: 5/8"-24 UNEF-2
