Product Code: ADP-7986
$21.99
1 in stock

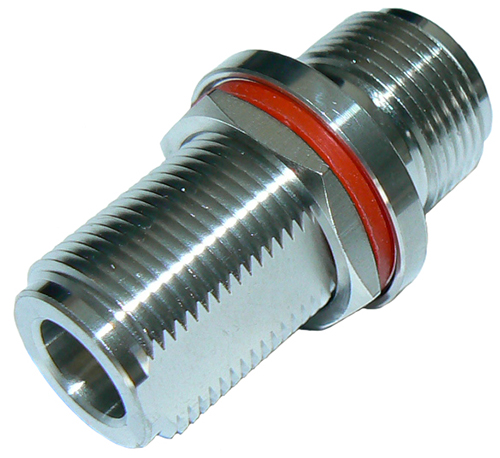

The ADP-7986 is an intra-series N-female bulkhead to N-female straight adaptor with mounting flange and nut. The ADP-7986 intra-series N-female adaptor is suitable for through-wall installation requirements where the included nut will secure your adaptor to your wall/mount plate.
| Frequency | DC to maximum 11 GHz |
|---|---|
| Maximum Power | 500 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - intra-series |
| Construction | Tri-metal plated body, gold plated centre pin and PTFE insulator |
| Connector | N-type female bulkhead and N-type female |
| Dimensions | Length: 38mm, Diameter: 17mm, Flange Diameter: 20mm |
