Product Code: OGI-EPH401
$48.99
10 in stock

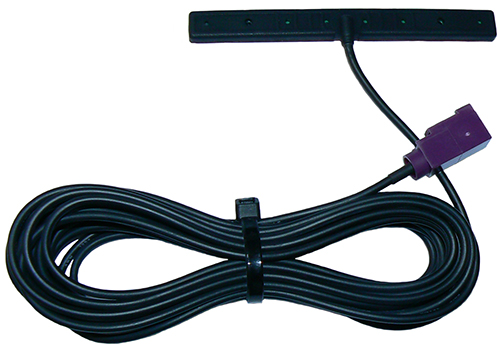

This OGI-EPH401 on-glass 4G LTE cellular antenna is designed for adhesive mount to the interior of a vehicles windscreen or window, suitable for mobile phone/wireless data reception across all available carriers 4G LTE and dualband 4G networks. The discrete design of the the OGI-EPH401 low profile on-glass 4G LTE cellular antenna is designed to not inhibit visability whilst achieving effective performance levels. Ensure no tint or embedded copper heating elements are in the path of the antennas radiating elements.
| Frequency | 700-960 MHz & 1710-2600 MHz - 4G LTE and dualband 4G, all ca |
|---|---|
| Bandwidth | Full frequency ranges stated |
| Gain | 1.5 dBi |
| Maximum Power | 5 Watts |
| Impedance | 50 Ohms |
| Polarisation | Horizontal on inside of window - no tint or heating elements |
| Construction | ABS black moulded cover and 5m RG174 cable assembly |
| Connector | Fakra Type D Plum as standard or specify requirements |
| Tuning | Factory at 1.5:1 VSWR |
| Dimensions | Length: 230mm, Width: 100mm, Height: 30mm |
