Product Code: ZAU-GPSWL-5
$196.99

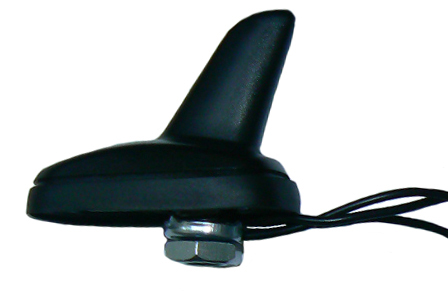

Our ZAU-GPSWL-5 low profile multiband cellular and GPS antenna can be used for L1 GPS, duaband Wi-Fi and 4G LTE as well as dualband 4G mobile phone applications, such as vehicle tracking + cellular/wireless data transfer. The ZAU-GPSWL-5 is designed for through-roof mounting onto a vehicle or heavy-equipment but can also be fixed location mounting onto your structure or at home/office. The shark-fin design reduces wind-loading and visual factor whilst maintaining effective performance across all stated frequency ranges.
| Frequency | 698-960, 1710-2170 & 2300-2700 MHz - 4G LTE + dualband 4G ; |
|---|---|
| Bandwidth | Mobile phone: Full frequencies stated ; L1 GPS: +/- 5MHz ; W |
| Gain | GPS: 27 dB ; Cellular 6.1 dBi ; WiFi/WLAN 3.3 dBi |
| Maximum Power | 10 Watts |
| Impedance | 50 Ohms |
| Polarisation | Mobile phone: Linear, GPS: RHCP, WiFi: Linear Vertical |
| Construction | Black ABS shark-fin radome and 3 x 5.0m RG174 bottom exit from antenna |
| Connector | No connectors fitted as standard, specify SMA, SMB, SMC, BNC |
| Tuning | Factory - Cellular: 2.0:1 ; L1 GPS: 1.5:1 ; WiFi: 2.15:1 |
| Dimensions | Length: 85mm, Height: 41.5mm |
