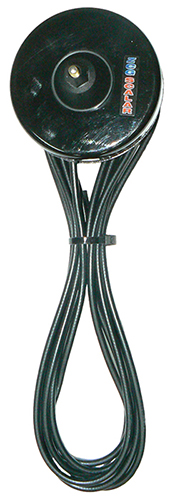

Magnetic OB Base cable base assembly, 4.7m RG58A/U, no termination, 5/16″-26 brass male thread – 105mm dia.

Product Code: MGB-OB


10 in stock

The MGB-OB magnetic base with Australian standard termination is suitable for short or long term installation on any magnetic metal surface. The MGB-OB does not include cable termination, so order required termination seperately. The MGB-OB comes with a paint protecting pad on the base and is suitable for any whip with a 5/16"-26TPI female thread, such as the M45T.

Impedance 50 Ohms
Polarisation Vertical or inverted on metallic flat surface
Construction Black powercoated magnetic base, Black Australian Standard OB base and 4.7m RG58A/U external cable
Connector Magnetic Base: 5/16"-26 brass male thread ; Cable Terminatio
Tuning No tuning required, trim cable to required length before fit
Dimensions Diameter: 105mm, Cable length: 4.7m, Antenna mount thread: 5
