Product Code: ZAU-GN-260
$391.05
1 in stock

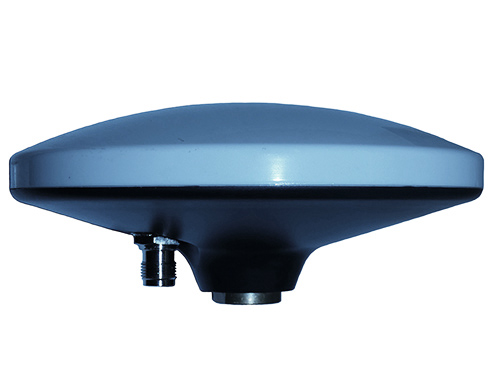

Our ZAU-GN-260 is an all-in-one low profile active GPS antenna covering L1/L2/L5/L6 GPS ; B1/B2/B3 BEIDOU ; L1/L2 GLONASS ; L1/E5b/E5a Galileo ; L1/L2/L5/L6 QZSS within the 1164-1300 & 1559-1615 MHz. The Low profile construction of the ZAU-GN-260 GPS antenna suits installation on your vessel, vehicle, caravan or structure where active GPS utilisation is required such as asset monitoring, or tracking.
| Gain | 4.5 dBic - typically at zenith ; LNA Gain: 38dB ± 2dB |
|---|---|
| Maximum Power | LNA DC Voltage: 3-16VDC ; LNA DC Current: 30mA (16mA at 3.3V |
| Impedance | 50 Ohms - nominal |
| Polarisation | R.H.C.P - right hand circular polarised |
| Construction | White ABS radome top, black ABS bottom radome, embedded FR4 PCB radiating elements, PTFE insulators, bottom mounted TNC male connector and brass mount thread |
| Connector | TNC female bottom exit from unit, cable can be supplied upon |
| Tuning | Factory at <2.0:1 VSWR |
| Dimensions | Diameter: 148mm ; Height (excl. mount): 48mm ; Mount thread: |
