Ground independent UHF detachable halfwave whip, 470-490 MHz, 50W, UHF male PL259, 4.7m cable, 4 dBi – 330mm

Product Code: GRN480


11 in stock

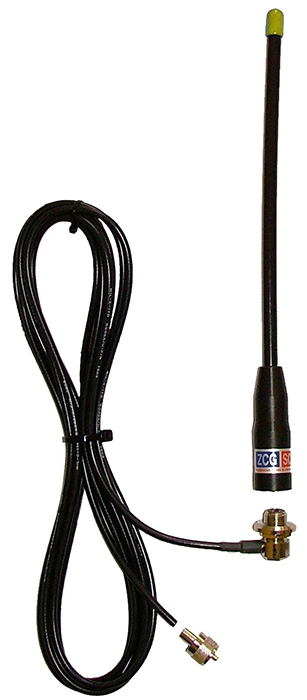

The GRN480 flexible half wave UHF detachable whip antenna, is designed for extreme conditions where a low profile, robust and reliable antenna is required such as mining, agricultural, military and heavy industry applications. The detachable radiating antenna top can be removed for situations where damage or vandalism may occur, or when not in use. Mounting of the right-angle cable assembly requires a 16mm hole or appropriate bracket.

Frequency 470-490 MHz - UHF including 477 MHz UHF CB
Bandwidth Full frequency range stated - 20MHz
Gain 4 dBi
Maximum Power 50 Watts
Impedance 50 Ohms
Polarisation Vertical
Construction Black PVC radome, blue identification cap, moulded base, detachable 4.7m RG58 cable mount base with right-angle UHF female and UHF male connector
Connector UHF Male PL259 supplied, not fitted
Tuning Factory at 1.5:1 VSWR
Dimensions Height: 340mm, Mount hole required: 16mm min.
