Product Code: FKM-8301-8
$8.99

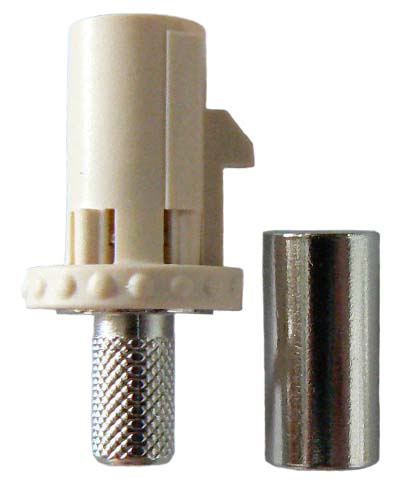

The FKM-8301-8 is a Fakra SMB, code I, beige, solder pin crimp connector for MIL-SPEC RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300) and MIL-SPEC RG58 low loss, solid core, foam PE dielectric cable (SKU: 7839-100/7839-300). The Code I Fakra has been designated as Bluetooth for ease of identification. For female model see FKF-8301-5.
| Frequency | DC to maximum 6 GHz |
|---|---|
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - solder pin, crimp-type |
| Construction | Nickel plated body, Nylon 66 shell, gold plated centre pin and PP insulator |
| Connector | Fakra SMB male - Code I, Beige, RAL 1001 |
