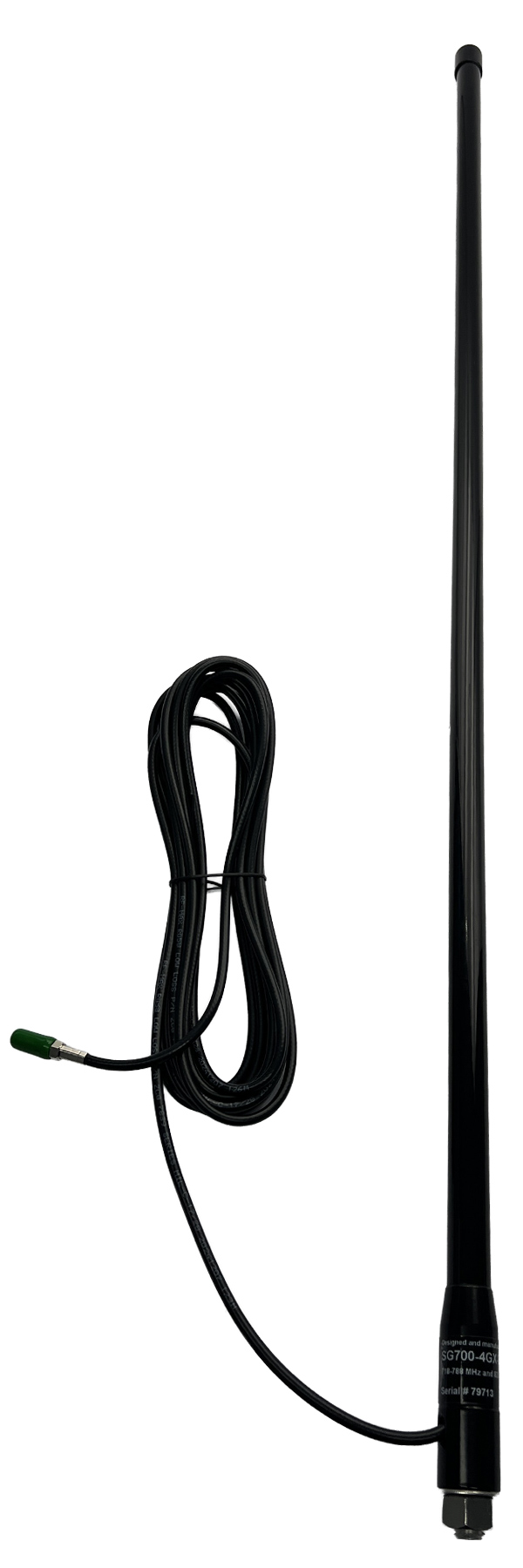

Dualband 4G/3G mobile phone/wireless data collinear, 30W, FME female, 5m RG58LL, 6.2 and 3 dBi – 800mm

Product Code: SGDB-B-TPM


56 in stock

The SGDB-B-TPM high gain 4G cellular antenna covers all of the upper and lower 4G mobile phone networks available, as well as being compatible with ISM900 applications utilising the 918-928 MHz frequency range. The SGDB-B-TPM broadband 4G cellular antenna is designed for mobile phone, wireless data or telemetry applications in a fixed location or vehicle installed, such as at your home, office or on your vehicle. The SGDB-B-TPM is also the replacement antenna for the SGDB-B 4G cellular vehicle antenna if damage occurs. Please note: the SGDB-B-TPM high gain 4G mobile phone antenna will not transmit or receive signal where no signal is present, please check your carrier for network coverage/available networks in your area.

Frequency 825-960 MHz & 1710-2190MHz - Upper and lower 4G cellular and
Bandwidth Full network frequency ranges stated
Gain 6.2 dBi - 825-960 MHz and 3 dBi - 1710-2190 MHz
Maximum Power 30 Watts
Impedance 50 Ohms - nominal
Polarisation Vertical
Construction Parallel black fibreglass radome, clear anodised aluminium mount ferrule and cap, 5m RG58 low loss and FME connector
Connector FME female connector fitted to 5.0m external black RG58 low
Tuning Factory at 1.6:1 VSWR
Dimensions Height: 800mm, Mount hole requirements: min. 12.7mm
