Product Code: M21T-WB-8
$139.54
30 in stock

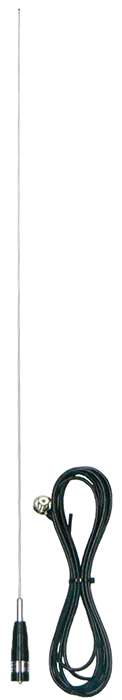

The M21T-WB-8 broadband VHF high band whip antenna is the ideal lightweight and broadband solution for VHF high band, Land Mobile Radio (LMR) communications and MMR applications utilising the 148-175 MHz frequency range. The M21T-WB-8 is a ground dependent antenna, requiring a metallic mounting/ground plane surface such as a vehicles roof or appropriate metallic surface to radiate as per specs. The M21T-WB-8 broadband VHF whip and base antenna is terminated with 8.0 metres of MIL-SPEC RG58 cable as standard unterminated from a connector allowing for specific connector for system selection, order separately. The M21T-WB-8 VHF high band vehicle whip antenna is tried, tested and trusted by emergency services around Australia.
| Frequency | 148-175 MHz - VHF high band |
|---|---|
| Bandwidth | Full frequency range stated - 27 MHz |
| Gain | 2.1dBi - on metallic ground plane |
| Maximum Power | 50 Watts |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Construction | Stainless steel tapered whip, OB-2 australian standard base and 8.0m RG58 MIL SPEC stranded |
| Connector | Termination: no termination supplied, order separate ; Whip |
| Tuning | Factory at better than 2:1 VSWR |
| Dimensions | Height: 450mm, Mount hole requirement: 16mm |
Australian owned & manufactured, high quality RF solutions since 1970
Experienced, knowledgeable in-house sales consultants and technical support
Quality certified and reliable, trusted product support
