Product Code: B45
$314.99

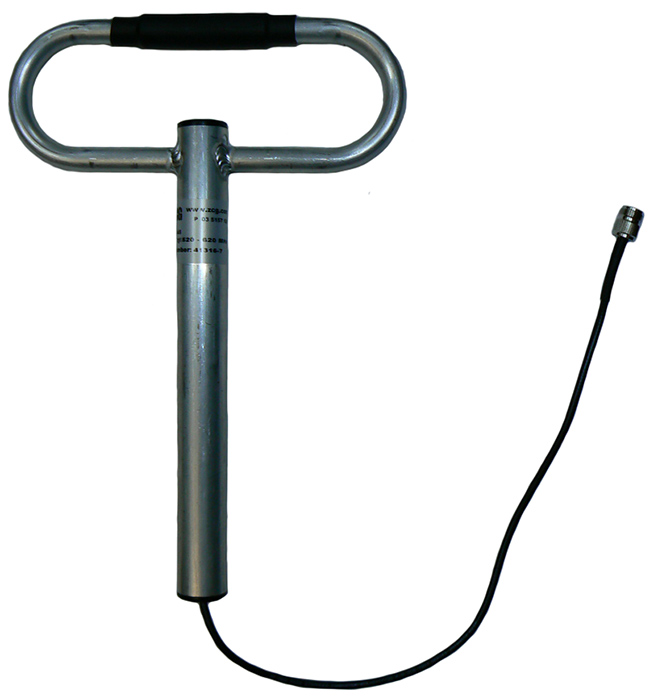

The B45 aluminium UHF sidemount dipole is designed and manufactured for UHF communications within the 520-620 MHz frequency range, or for wireless microphone applications. The design of the B45 UHF folded dipole antenna means its will take up minimal space on your mast/tower or structure. The B45 broadband UHF dipole antenna is minimalist in dimensions and weight so is suitable for portable outside broadcasting requirements where a pump-up mast is utilised. Stacking the B45 UHF sidemount dipole in an array formation will increase gain and give a more directional pattern.
| Frequency | 520-620 MHz - UHF and wireless microphone compatible |
|---|---|
| Bandwidth | Full frequency range stated - 100MHz |
| Gain | 0 dBd for a single bay, stacking increases ga |
| Maximum Power | 250 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Vertical, for horizontal requirements specify to ZCG for dra |
| Construction | Welded aluminium dipole and stand-off section, 500mm external RG58A/U and N-female connector |
| Connector | N-type female fitted to 500mm RG58A/U cable |
| Tuning | Factory at 1.5:1 VSWR |
| Dimensions | Height: 240mm, Mount section 270mm x 31mm O.D. |
