Product Code: B46BSS
$973.99
5 in stock

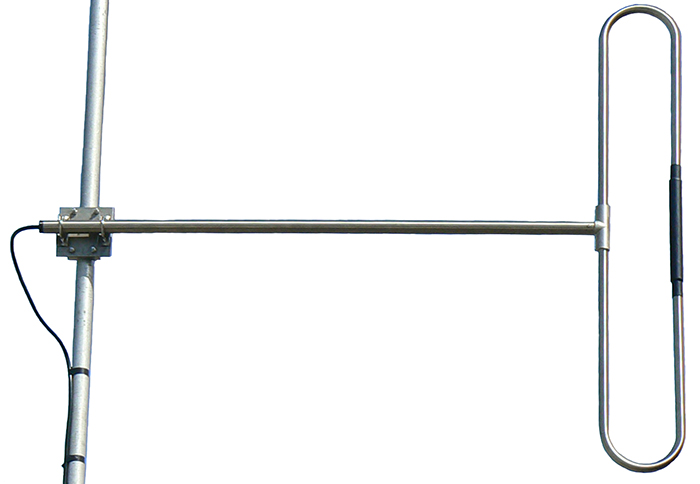

The B46BSS sidemount dipole is an ideal choice for use as an FM radio broadcast antenna or as a standby boradcast antenna. It will cover a broad bandwidth and permit single antenna sharing with multiple FM transmit frequencies. ZCG recommend mounting the B46BSS as high on your tower or structure as possible using 1 x Y2300-SS mounting hardware.
| Frequency | 87.5-108 MHz - FM Radio |
|---|---|
| Bandwidth | Full frequency range stated - 20.5 MHz |
| Gain | 0 dBd - stacking increases gain |
| Maximum Power | 500 Watts |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Construction | 304 grade stainless steel dipole, stand-off mount section, 1.5m external RG213 cable and N-female connector |
| Connector | N-type female fitted to 1.5 metre RG213 coaxial cable |
| Tuning | Factory at better than 1.3:1 VSWR |
| Dimensions | Dipole height: 1.4m, Dipole stand-off: 1.5m x 38.1mm O.D. |
