Product Code: BM-7936-2
$23.99
On back order

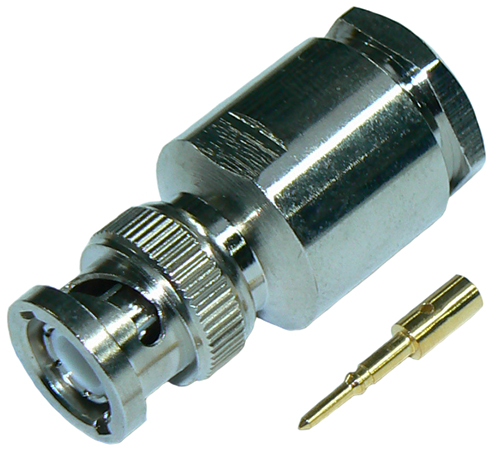

The BM-7936-2 is a BNC male clamp-style connector for RU400 low loss, solid copper conductor, braid shielded coaxial cable (SKU: 7890-100/7890-300) and RU400-UF ultra flexible, stranded core, foam PE dielectric coaxial cable (SKU: 7890-2).
| Frequency | DC to maximum 4 GHz |
|---|---|
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - clamp-style |
| Construction | Nickel plated components, gold plated centre pin, PTFE insulators and rubber O-rings |
| Connector | BNC male / BNC-M |
| Tuning | 1.25:1 VSWR at DC-300 MHz |
| Dimensions | Length: 38.5mm, Rear diameter: 19mm, Front diameter: 14.5mm |
