BNC male solder pin, clamp-style connector for RU400-75 low loss, solid core coaxial cable, 75 Ohms – tri-metal plated

Name: BNC male solder pin, clamp-style connector for RU400-75 low loss, solid core coaxial cable, 75 Ohms - tri-metal plated
SKU: BM-8267
Availability: InStock

Product Code: BM-8267

On back order - Average dispatch time for back ordered items is currently 2–4 weeks.

$21.99

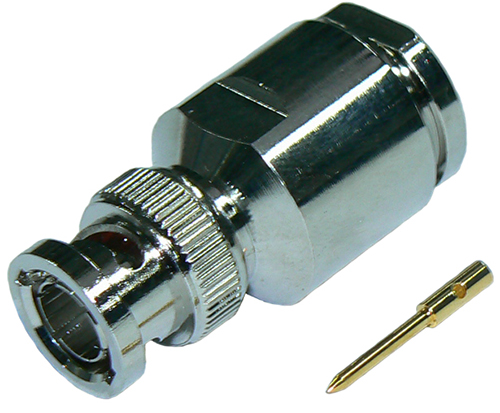

The BM-8267 is a 75 Ohm BNC male, solder pin, clamp-style coaxial connector for RU400-75 low loss, solid copper conductor, foam PE dielectric coaxial cable (SKU: 8121-300).

Frequency	DC to maximum 4 GHz
Impedance	75 Ohms - nominal
Polarisation	Straight - solder pin, clamp-style
Construction	Tri-metal plated body and clamp nut, gold plated centre pin and PTFE insulators
Connector	BNC male 75 Ohms / BNC-M-75
