Product Code: BM-7965
$9.99
49 in stock

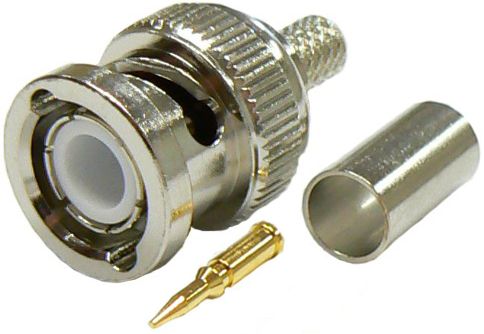

The BM-7965 is a BNC male crimp coaxial connector for MIL-SPEC RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300), MIL-SPEC RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300) and RG223 solid core, dual braid shielded coaxial cable (SKU: 7887-300). Alternatively the pin can be soldered onto your coaxial cable. Hex crimp 0.213". Crimp Pin: 0.68".
| Frequency | DC to maximum 4 GHz |
|---|---|
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - crimp-type |
| Construction | Tri-metal albaloy plated body and crimp sleeve, gold plated centre pin and PTFE insulator |
| Connector | BNC male / BNC-M |
| Dimensions | Length: 25mm, Dia: 14.5mm |
