Product Code: QSM-8317-7
$11.99

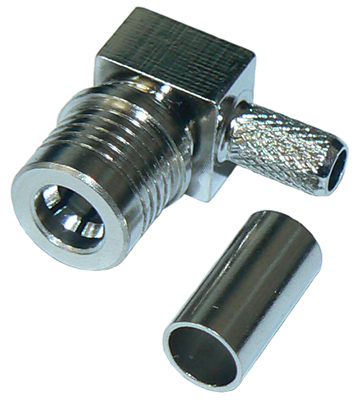

Our QSM-8317-7 is a right-angle QMA male 'quick-lock' solder and crimp connector for MIL-SPEC RG58A/U stranded core, solid PE dielectric coaxial cable (SKU: 7803-100/7803-300) and MIL-SPEC RG58 low loss, solid core, foam PE dielectric coaxial cable (SKU: 7839-100/7839-300).
| Frequency | DC to maximum 6 GHz |
|---|---|
| Impedance | 50 Ohms - nominal |
| Polarisation | Right-angle - solder pin, crimp-type |
| Construction | Nickel plated body and crimp sleeve, gold plated centre pin and PTFE insulator |
| Connector | Right-angle QMA male / Right-angle QMA-M |
| Tuning | 1.25:1 VSWR at DC-3 GHz |
