Product Code: EIA158U-158F
$902.99
2 in stock

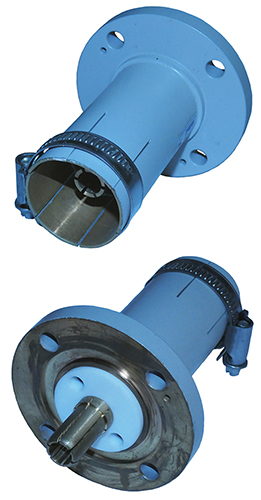

Our in-house manufactured EIA158U-158F 1-5/8" EIA unflange to 1-5/8" EIA flanged adaptor is suitable for transforming from 1-5/8" rigid transmission line to 1-5/8" coaxial cable or for direct connector to your 1-5/8" flanged transmitter input.
| Frequency | DC to maximum 2 GHz |
|---|---|
| Maximum Power | 15 Kilowatts / 15,000 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - intra-series |
| Construction | Powdercoated outer finish, polished brass, machined copper or brass inner line and PTFE insulator supports |
| Connector | 1-5/8" EIA unflanged to 1-5/8" EIA flanged |
| Tuning | Factory |
| Dimensions | Length (incl. bullet): 136mm ; 1-5/8" flanged diameter: 88.9 |
