Product Code: 78EIA Bullet
$57.99

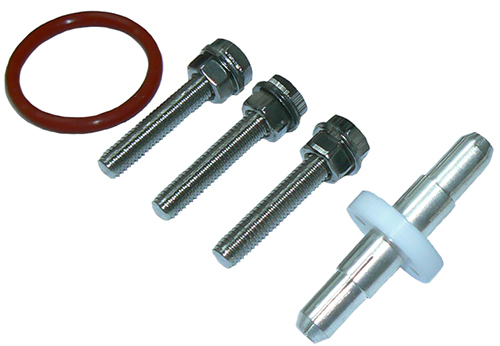

Our 78EIA Bullet is the central joining bullet for 7/8" EIA flanged or unflanged connectors, adaptors or rigid line. Each 78EIA Bullet kit includes a replacement O-ring and 3 x securing bolts for flanged 7/8" EIA connector or adaptors. We recommend cotton gloves be worn whilst handling the silver plated bullet as dirt/grit or finger oils can contaminate the surface leading to arcing and discolourisation of your bullet/connector.
| Frequency | DC to maximum 5 GHz |
|---|---|
| Maximum Power | 5 Kilowatts / 5000 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight |
| Construction | Silver plated copper alloy bullet, FEP insulator, 304 stainless steel securing hardware and silicone O-ring |
| Connector | Interface as per IEC 60339-2 |
| Tuning | 1.01:1 at DC to 1.0 GHz ; 1.02:1 at 1.0 to 2.7 GHz ; 1.07:1 |
| Dimensions | Bullet overall length: 49.1mm ; Insulator diameter: 20.6mm |
