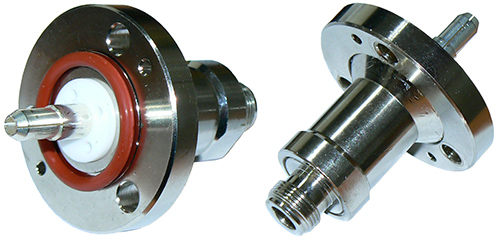

7/8″ EIA flanged connector to N-type female jack straight adaptor, incl. mounting – nickel and silver plated

Product Code: EIA78F-NJ

$356.99

On back order

The EIA78F-NJ is a ZCG Scalar 7/8" EIA flange to N-type female adaptor designed for reliable RF interfacing between high-power transmission lines and standard N-type coaxial systems. Engineered for 50 Ohm applications, this straight adaptor enables seamless integration between 7/8" EIA flanged equipment and N-type female connections in broadcast, telecommunications, and RF infrastructure environments. Supporting power handling up to 500 W, the EIA78F-NJ is well suited to system testing, commissioning, and permanent installations where robust, low-loss signal transfer is required. The adaptor provides stable impedance continuity across the interface, ensuring consistent RF performance in high-frequency and high-power applications. Constructed with nickel and silver plated components, the adaptor offers excellent conductivity and corrosion resistance, supporting long-term reliability in both indoor and outdoor deployments. The unit is IP67 rated when correctly installed, providing protection against dust and water ingress in exposed environments. Supplied as a complete kit, the EIA78F-NJ includes a silver-plated joining bullet along with 304 stainless steel mounting hardware, including bolts, washers, and nuts, ensuring secure and precise installation onto standard EIA flange interfaces. Typical applications include broadcast transmission systems, RF test setups, base station infrastructure, and high-power coaxial networks requiring interface conversion between EIA and N-type connections. Combining high-power handling capability, durable plated construction, and seamless interface compatibility, the EIA78F-NJ from ZCG Scalar is a dependable adaptor solution for professional RF system integration and testing applications.
