Product Code: ADP-8235
$38.99
2 in stock

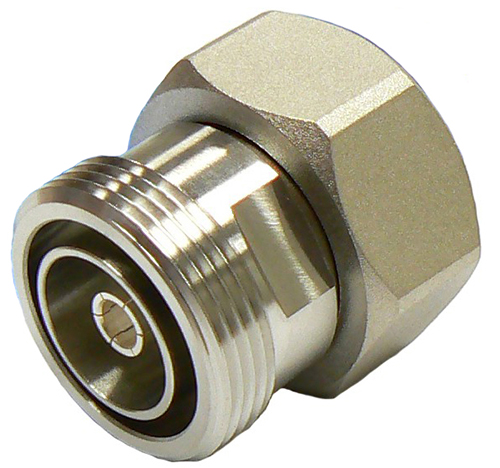

The ADP-8235 is a 7/16" DIN male to 7/16" DIN female low passive intermodulation / low PIM straight inter-series coaxial adaptor. The ADP-8235 low PIM 7/16" DINM to 7/16" DINF coaxial adaptor can be utilised for cable to cable or cable to equipment connections.
| Frequency | DC to maximum 3 GHz |
|---|---|
| Impedance | 50 Ohms - nominal |
| Polarisation | Straight - screw-type |
| Construction | Tri-metal plated body, silver plated centre conductor and PTFE insulator |
| Connector | 7/16" DIN male and 7/16" DIN female |
