Product Code: ZCM-698-6000
$260.00
4 in stock

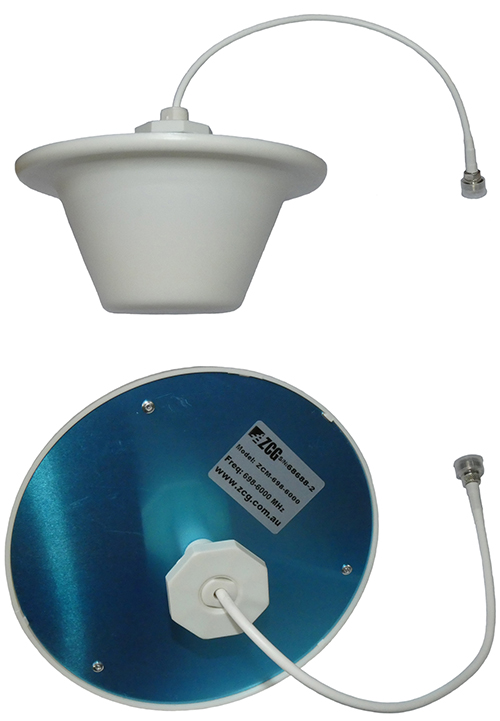

The ZCM-698-6000 ceiling mount panel covers 5G, 4G LTE and dualband 4G cellular networks along with WiFi/WLAN bands combined within a small radome enclosed 'dome' profile. The ZCM-698-6000 all-in-one cellular and WiFi antenna's low profile is suitable for discrete installation into a roof cavity, structure overhang or any location where mutliband capabilities are required.
| Frequency | 698-960 / 1710-2170 / 3300-4000 & 4900-6000 MHz - 5G, LTE, d |
|---|---|
| Bandwidth | Full frequency ranges stated |
| Gain | 2.0 - 5.5 dBi - depending on frequency, see specification sh |
| Maximum Power | 50 Watts |
| Impedance | 50 Ohms |
| Polarisation | Vertical |
| Construction | UV stabilised ABS radome, internal aluminium reflector plate, external coaxial cable and N-female connector |
| Connector | N-type female fitted to cable - base exit from panel |
| Tuning | Factory at <2.0:1 to <1.5:1 VSWR - see specification sheet |
| Dimensions | Height: 86mm, Diameter: 186mm |
