Product Code: ZVBPF-118137
$2,652.99

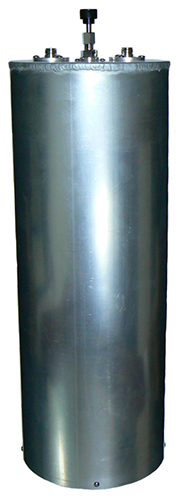

The ZVBF-118137 single cavity band-pass filter will work within the VHF Air Band 118-137 MHz frequency range, suitable for regional, rural or high density airport communication systems.The ZVBF-118137 Air Band band-pass cavity filter is ideal for recieve isolation for a single transmit or receive channel. The ZVBF-118137 VHF airband cavity filter can be re-tuned in the field in case of alternate frequency requirements adjusting the slider referencing with a network analyser to your required alternate frequency. ZCG proudly manufacture 100% of the ZVBF-118137 VHF Air Band cavity band-pass filters in our Lindenow manufacturing facility.
| Frequency | 118-137 MHz - VHF Air Band |
|---|---|
| Bandwidth | Specify any 200 kHz when ordering |
| Maximum Power | 250 Watts |
| Impedance | 50 Ohms - nominal |
| Polarisation | Can be mounted vertically utilising a flat surface and/or br |
| Construction | Clear anodised aluminium outer cavity body, internal INVAR tuning components, PTFE insulators and nickel plated terminations |
| Connector | Input: N-type female, Output: N-type female |
| Tuning | Factory at better than 1.2:1 VSWR, can be in-field re-tuned |
| Dimensions | Height: 550mm, Outer Diameter: 203mm |
